HYB_D-40W Series


Products : HYBxxyyD-40W

Characteristic parameter :

  • 1:2 Wide input voltage , Isolation, Voltage stabilization, positive single output. Output power 40 Watt.
  • International standard pin: Lead-free.
  • DIP : Double in-line package.
  • Temperature Range:-40¡æ to +85¡æ
  • UL94V-0 Inflaming retarding package
  • MTBF>1million hours(25¡æ)
  • Input / output Isolation Voltage 1000 VDC
  • Input voltage :  12VDC/ 24VDC/ 48VDC/ 110VDC.
  • Output voltage: 5VDC/ 12VDC/ 15VDC/ 24VDC.
  • Efficiency high to 89%
  • Short-circuit protection

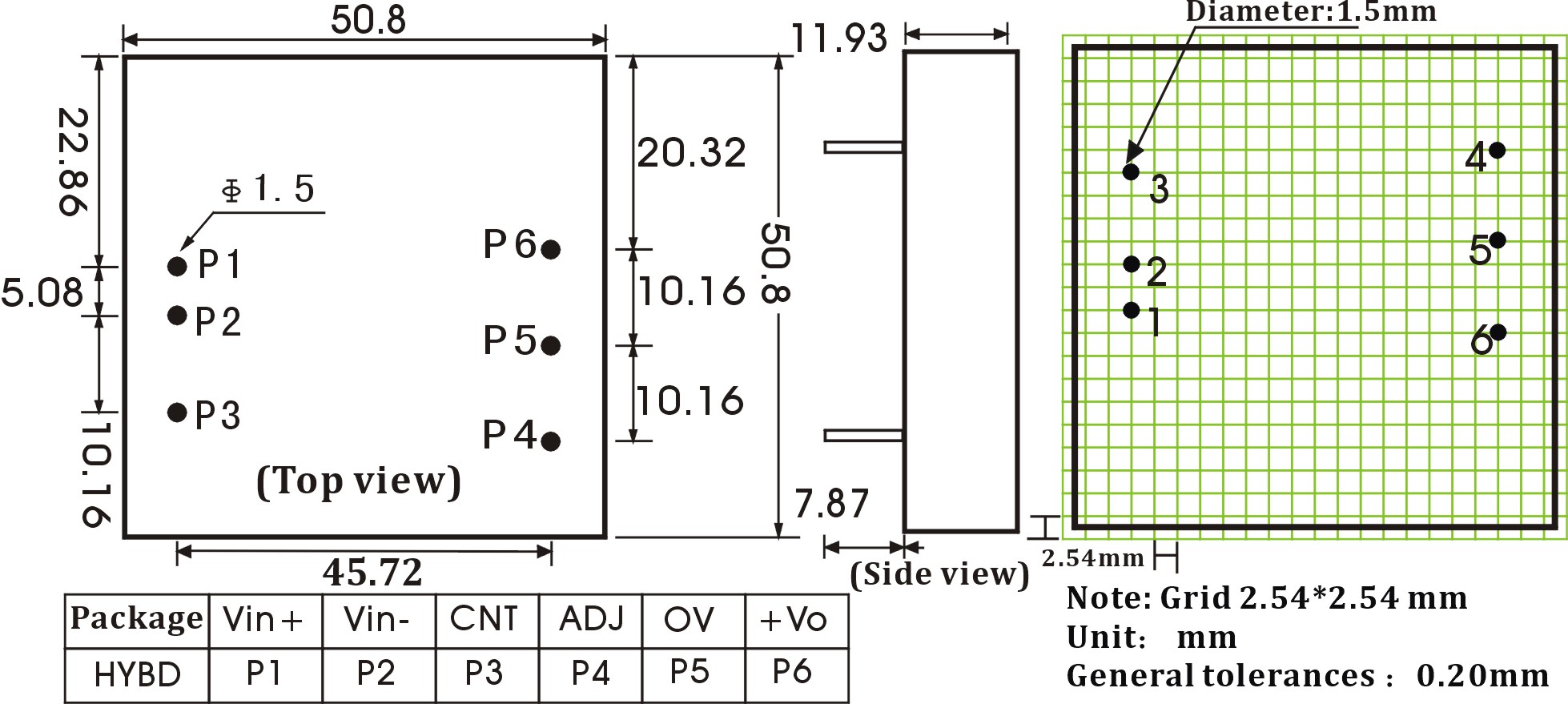

Product overall dimensions : 50.8¡Á50.8¡Á11.93(mm)


PDF Download£º HYBD-40W-En.pdf
