ID_XS-2W Series

Products : IDxxyyzzXS-2W

Characteristic parameter :

  • Fixed input voltage , Double Isolation, Voltage stabilization, positive- double output. Output power 2 Watt.
  • International standard pin: Lead-free.
  • 10 PIN SIP : Single in-line package.
  • Temperature Range:-40℃ to +85℃
  • UL94V-0 Inflaming retarding package
  • MTBF>1million hours(25℃)
  • Input / output Isolation Voltage 1000 VDC
  • Input voltage : 5VDC/ 12VDC/ 24VDC.
  • Output voltage: 5;5VDC/ 9;9VDC/ 12;12VDC/ 15;15VDC.
  • Efficiency high to 80%

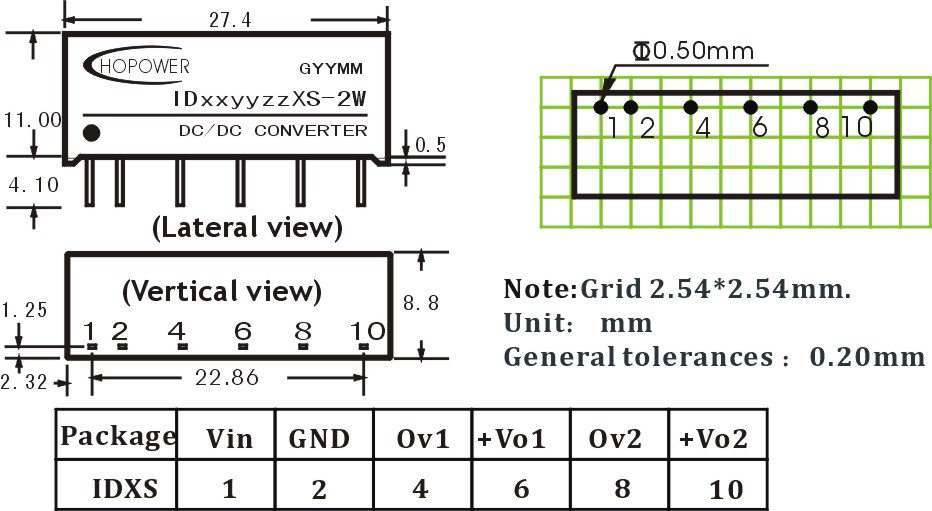

Product overall dimensions : 27.4×8.8×11 (mm)


PDF Download: IDXS-2W-En.pdf
