Characteristic parameter :

• Fixed input voltage , Double Isolation, Voltage stabilization, positive- double output. Output power 1 Watt.
• International standard pin: Lead-free.
• 10 PIN SIP : Single in-line package.
• Temperature Range:-40℃ to +85℃
• UL94V-0 Inflaming retarding package
• MTBF>1million hours(25℃)
• Input / output Isolation Voltage 1000 VDC
• Input voltage : 5VDC/ 12VDC/ 24VDC.
• Output voltage: 5;5VDC/ 9;9VDC/ 12;12VDC/ 15;15VDC.
• Efficiency high to 80%

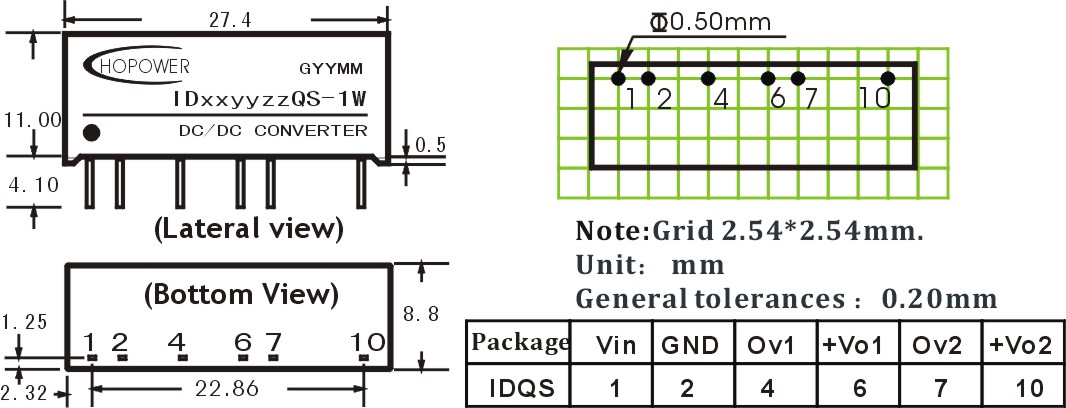

Product overall dimensions : 27.4×8.8×11 (mm)
