Products : AxxyyM-1W
Characteristic parameter :
- Fixed input voltage , Isolation, Voltage not stabilization, positive negative bipolar output. Output power 1 Watt.
- International standard pin: Lead-free.
- 6 PIN SIP : Single in-line Package.
- Temperature Range:-40¡æ to +85¡æ
- UL94V-0 Inflaming retarding package
- MTBF>1million hours(25¡æ)
- Input / output Isolation Voltage 1000 VDC
- Input voltage : 5VDC/ 12VDC/ 24VDC.
- Output voltage: ¡À5VDC/ ¡À9VDC/ ¡À12VDC/ ¡À15VDC.
- Efficiency high to 82%

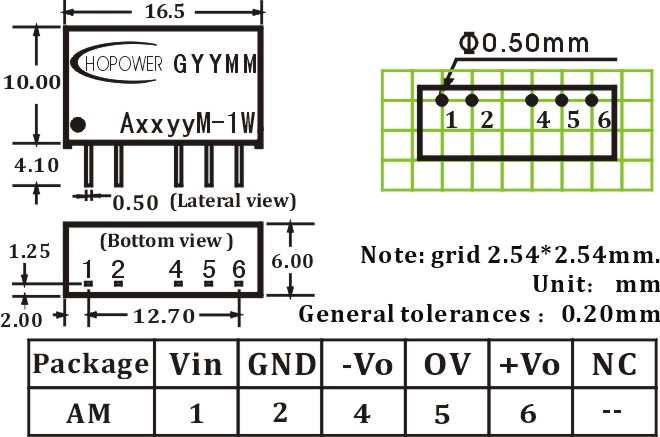

Product overall dimensions : 16.5¡Á6.0¡Á10 (mm)
|
| |
| PDF Download£º AM-1W-En.pdf |
|
|
|
|
