| A_D-2W Series |
| |
Products : AxxyyD-2W
Characteristic parameter :
- Fixed input voltage , Isolation, Voltage not stabilization, positive negative bipolar output. Output power 2 Watt.
- International standard pin: Lead-free.
- 14 PIN DIP : Double in-line package.
- Temperature Range:-40¡æ to +85¡æ
- UL94V-0 Inflaming retarding package
- MTBF>1million hours(25¡æ)
- Input / output Isolation Voltage 1000 VDC
- Input voltage : 5VDC/ 12VDC/ 24VDC.
- Output voltage: ¡À5VDC/ ¡À9VDC/ ¡À12VDC/ ¡À15VDC.
- Efficiency high to 86%

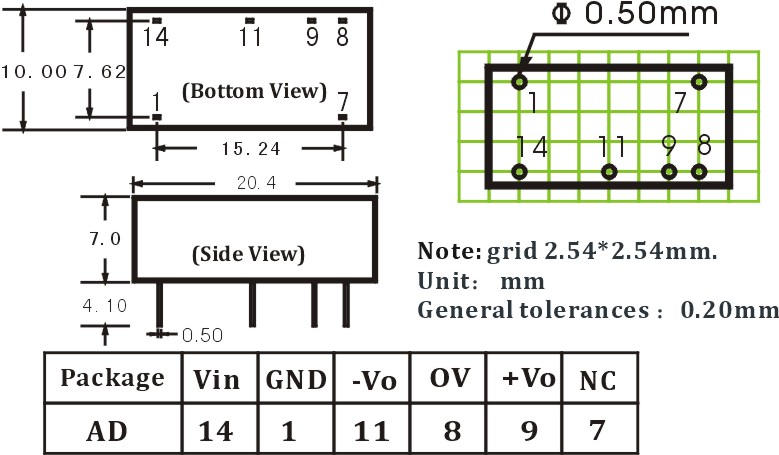

Product overall dimensions : 20.4¡Á10¡Á7 (mm)
|
| |
| PDF Download£º AD-2W-En.pdf |
|
|
|
|
