| HYB_S-2WR Series |
| |
|
Products : HYBxxyyRS-2W
Characteristic parameter :
- 1:2 Wide input voltage , Isolation, Voltage stabilization, positive single output. Output power 2 Watt.
- International standard pin: Lead-free.
- 8 PIN SIP : Single in-line package.
- Temperature Range:-40¡æ to +85¡æ
- UL94V-0 Inflaming retarding package
- MTBF>1million hours(25¡æ)
- Input / output Isolation Voltage 1000 VDC
- Input voltage : 5VDC/ 12VDC/ 24VDC/ 48VDC.
- Output voltage: 5VDC/ 9VDC/ 12VDC/ 15VDC.
- Efficiency high to 86%
- Short-circuit protection

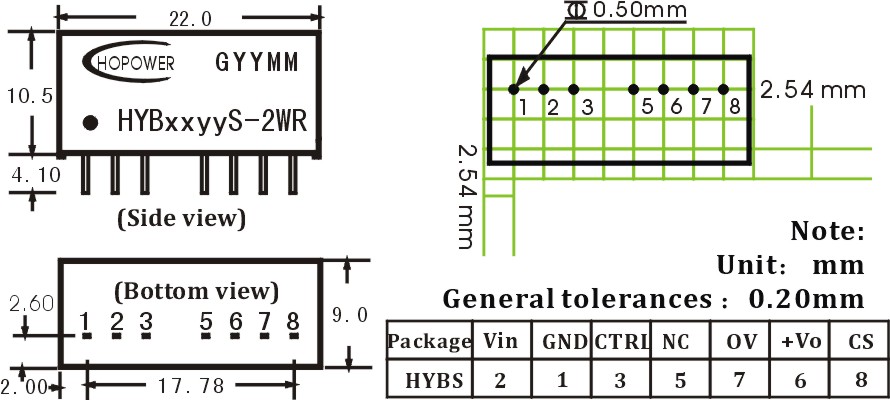

Product overall dimensions : 22¡Á9.5¡Á12 (mm)
|
| |
| PDF Download£º HYBS-2WR-En.pdf |
|
|
|
|
